CDK Mobile Systems, in cooperation with Gichner Shelter Systems and Wenzlau Engineering, presents the 5th Wheel Mobilizer System for handling and transport of ISO Containers and Shelters weighing up to 20,000 pounds behind standard commercial or military road haul tractors.

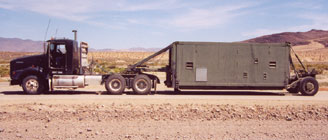

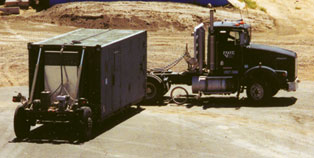

Unlike the lunette ring/pintle connection associated with most shelter mobilizers, the 5th Wheel Mobilizer System provides a true fifth wheel attachment to connect to the standard kingpin utilized by over-the-road tractors. Because of the rotating 5th wheel connection, the system can turn in a very tight circle, with the rear inside wheel remaining almost stationary. The 5th Wheel design also permits precise backing of the shelter into tight places.
|
|

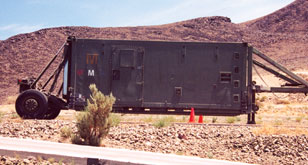

The front portion of the 5th Wheel Mobilizer System consists of a rigid frame which connects to the four ISO Corner castings on the front end of a container. This half also includes lifting jacks for raising of the container up to kingpin height, and electrical and air brake connections to the tow vehicle. The front part also includes removable castor wheels to assist with positioning and connection to the container. The frame attaches to the tractor kingpin the same way as any commercial semi-trailer.
|
|
The rear portion of the 5th Wheel Mobilizer is the rear half of the standard US Army M1022-A1 Dolly Set. This half part includes a diesel engine hydraulic system for attachment to the shelter and for lifting up to ride height. The M1022-A1 system was proven with more than 12,000 miles of testing on all types of terrain at the US Army Aberdeen Proving Ground.
| Tare Weight | 4,700 Ibs. (2,136 kg) |
| Capacity | 20,000 Ibs. (12,500 kg) |
| Width | 96 in (244 cm) |
| Height | 96 in (244 cm) |
| Length (w/20 ft Shelter) | 407 in (1034 cm) |
| Highway Speed | 50 mph (90 kph) |
| Off-Road Speed | 15 mph (25 kph) |
| Tire Size | 12R x 22.5 |
| Ground Clearance | 14 in (25 cm) |
The rear half also includes shock absorbers and air bags to provide for a smooth ride and permits towing on rough terrain surfaces (only limited by capabilities of the prime mover). Air brakes are included on the rear unit, as is a parking brake system capable of holding the weight of the entire system when disconnected from the tow vehicle. Other details of the rear dolly can be found in the M1022-A1 Dolly Set portion of this site.
The leading particulars shown above
are based on the tested configuration as fielded with the US Navy in early 2004.
