The
CLT and Dolly Set Systems provide side lifting for container loading and unloading
to/from flatbed trucks, trailers and railcars. With its independently powered,
easily maneuverable halves, along with its patented gantry sling lift method,
the CLT and Dolly Sets reduce the need for other handling equipment in the field
such as PLS systems, RTCHs, cranes, forklifts, stackers, flatbed trucks and
trailers.
 |
 |
|

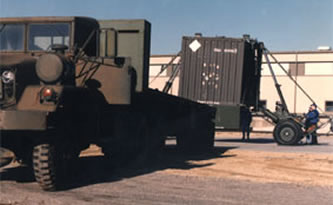

Side
Lift Handling
US Army Ammunition Container |
Side
Lift Tactical ISO Shelter |
This handling feature
is particularly beneficial in forward locations not equipped with fixed material
handling equipment. It provides integral container handling capabilities
to field level operating units, to alleviate dependency on motor transport units.
The system can also facilitate the transloading of containers at major forward
intermodal points.
Side Lift capabilities are built in to every 25-Ton CLT system, and are available as optional kits on M1022-A1 and CLT Dolly Sets.
After
CLT or Dolly Set halves are positioned at the sides of the container, side lifting
for loading of other vehicles can be accomplished in a matter of minutes as
follows:
 |
 |

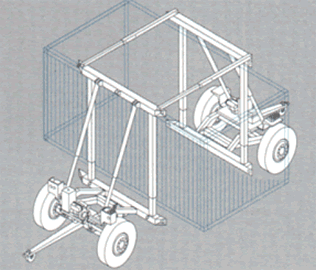

Step 1 – The upper side lift beams are connected together across the top of the container with telescoping cross bars to form a fixed gantry.
Step 2 – Chains or straps are attached from the upper horizontal beams to the lower container corner castings, and back to the CLT or Dolly Set axle. Once connected, the lift cylinders are extended to raise the container off the ground up to a suitable loading height.
|
