The 25-ton
capacity CLT was originally developed by Danish Container Supply and is still
produced at the DCS manufacturing facility in Denmark. The CLT system is currently
in service in more than 15 countries, and customers include Military Agencies
in the USA, Denmark, Canada, Italy, Switzerland, Australia, China, Finland,
Portugal, the United Kingdom, and Spain.
The 25-ton capacity CLT system is NATO codified (NSN 3950-22-121-7471) and is
available as a commercial off-the-shelf (COTS) item from CDK Mobile Systems
Inc.
![]() |
![]() |

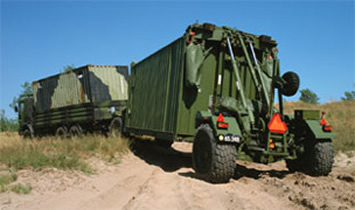

| CLT System - 4 Wheel Unloaded Transport | Rough Terrain Transport |
The basic CLT
design incorporates the following capabilities as standard equipment:

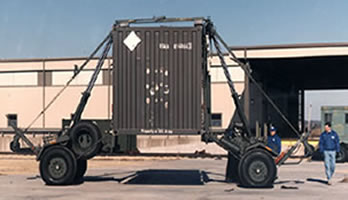

Built-in side lift capability
to enhance container handling in remote areas:
![]() |
![]() |

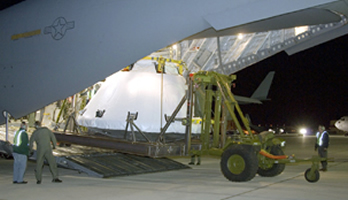

| Side Lift Capacity = 52,800 Pounds | C17 Aircraft Loading |
Hydraulic Self-Powered Wheels to facilitate handling of unloaded CLT half parts, and to move empty or lightweight containers short distances on improved surfaces.
Self-Propelled Wheels
| Weight (Empty) | 14,000 pounds |
| Lift Capacity (Container Weight) | 52,800 pounds |
| Transport
Capacity (Container Weight) |
48,000 pounds @ 20mph |
| Maximum Lift Height | 70 inches |
| Length
(With 20 Foot Container) |
41 feet |
| Width | 100 inches |
| Height | Adjustable |
| Engine Diesel | 6.2 hp Elec. Start |
| Tires (Standard) | 65R / 22.5 |
| Brakes | Full
Air (from tow vehicle) ABS Available (Option) |
| Tow Bar | NATO Standard Lunette |
| Suspension | Hydraulic |
| Patent | 5,006,031 |
See Product Functions for for detailed information on container/shelter handling, transport & C-130 loading capabilities.
See Product Support for detailed information on support services offered by CDK Mobile Systems.
|
CLT
|
Requires Adobe Acrobat Reader, available at http://www.adobe.com/products/acrobat/readstep.html
|
CLT
Accessories
|
Requires Adobe Acrobat
Reader, available at http://www.adobe.com/products/acrobat/readstep.html
|
CLT
& M1022-A1 Dolly Set Mobilizer
|
Requires
Real Media Player - Free Download at:
http://www.real.com/realoneplayer.html
Video download requires high-speed internet connection. Hard copies of the video
presentation on CD ROM are also available. Click here to request a copy: Request
for Information
